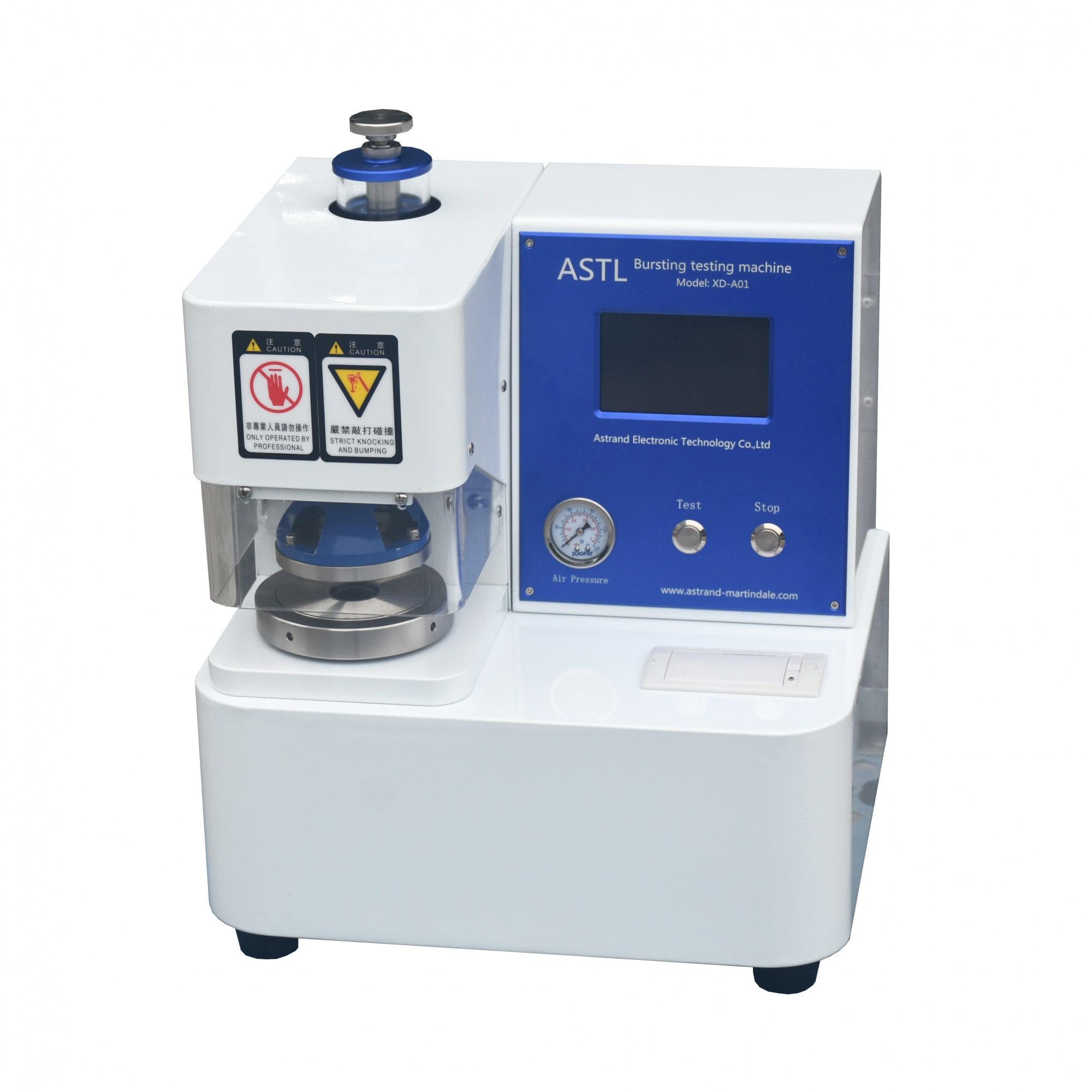

The machine is used to detect the burst strength and burst index of paper and cardboard. It is to detect the ability of the carton to protect the product during handling, loading and unloading, impact, tearing and extrusion during the circulation process. It is the comprehensive performance of the carton. one of the evaluation methods. Suitable for box board, kraft paper, cardboard, corrugated paper, gray board paper, etc. It is more suitable for carton manufacturers, carton users, scientific research institutions and so on.

Standards:

GB/T454, QB/T 1057, ISO 2758

Specification:

Measuring range	150~5600kpa (cardboard) 50~1400kpa (paper)



Accuracy	≤±0.5%
Resolution	0.01kpa
Deformation error	≤1mm
Concentricity of upper and lower discs	≤0.25mm
The pressure of the film convex plate	10mm, (170~220)kPa; 18mm, (250~350)kPa (cardboard) (9±0.2)mm/(30±5)kPa (paper)
Oil delivery speed	175±5ml/min (cardboard); 95±5ml/min (paper)
Pressure outer diameter	35mm±1mm
Work displacement	53mm±2mm
Platen diameter	Upper plate diameter: (31.5±0.5)mm; Lower plate diameter: (31.5±0.5)mm
Deformation monitoring	chord length 41mm, three-dimensional semicircle full-window observation window
Test control	with delay pressurization control, with decompression delay control
Drive structure	all-steel chain drive to prevent deviation of compression and improve detection stability and service life
Oil cup system	high-strength and high-pressure oil circuit sealing system, with double sealing knob, 25mm high-pressure 30 stainless steel oil pipe
Circuit board chip protection	comes with a water vapor filter device to protect the stability of the circuit device
Power supply block device	anti-interference, prevent electromagnetic field instability, ensure the accuracy and reliability of test data
Calibration system	Self-contained calibration system, self-contained manual pressurization and decompression control system
Test head material	the cylinder part, the upper clamping part and the lower clamping part are all 304 stainless steel
Human-machine interface	7in touch screen display, easy to operate
Clamping force	greater than 690kpa (adjustable)
Unit conversion	Kg/cm2, kpa, lbf/in2
Printout	Modular all-in-one thermal printer
Dimensions	400mm×400mm×500mm
Weight	50KG
